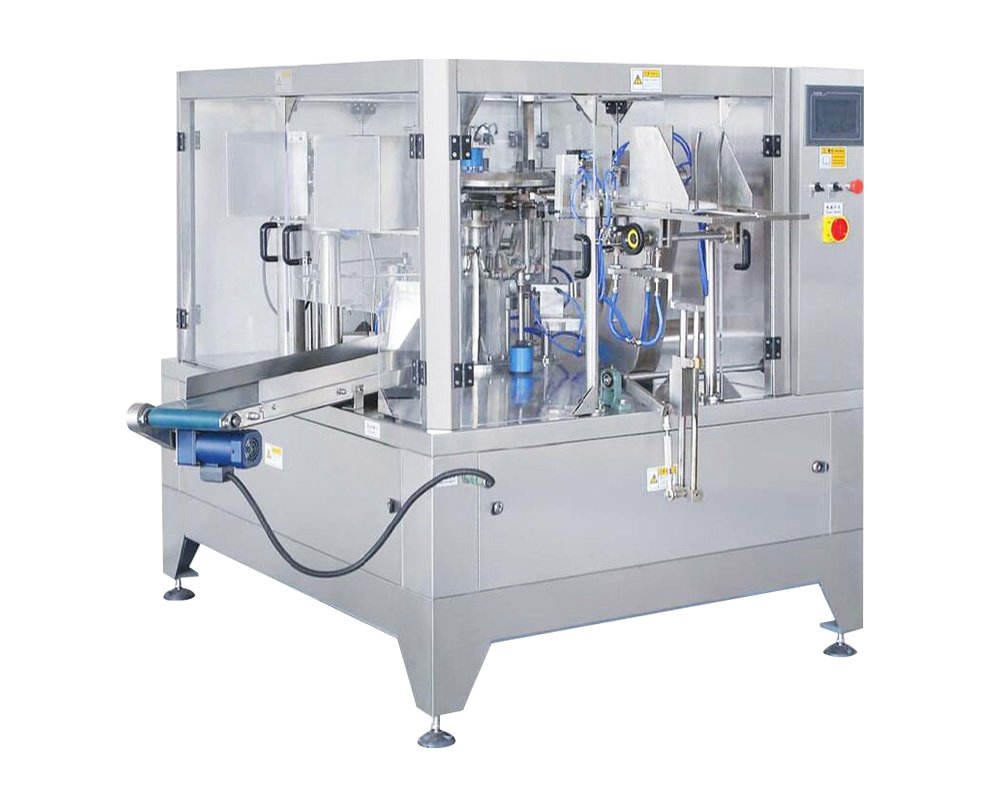

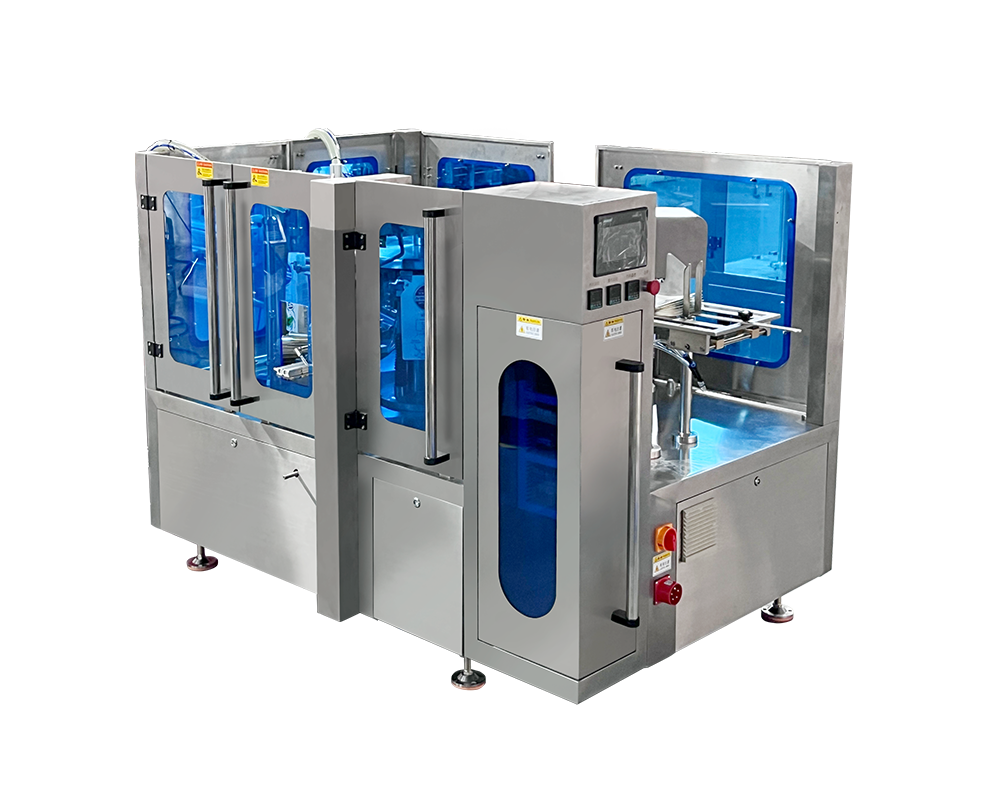

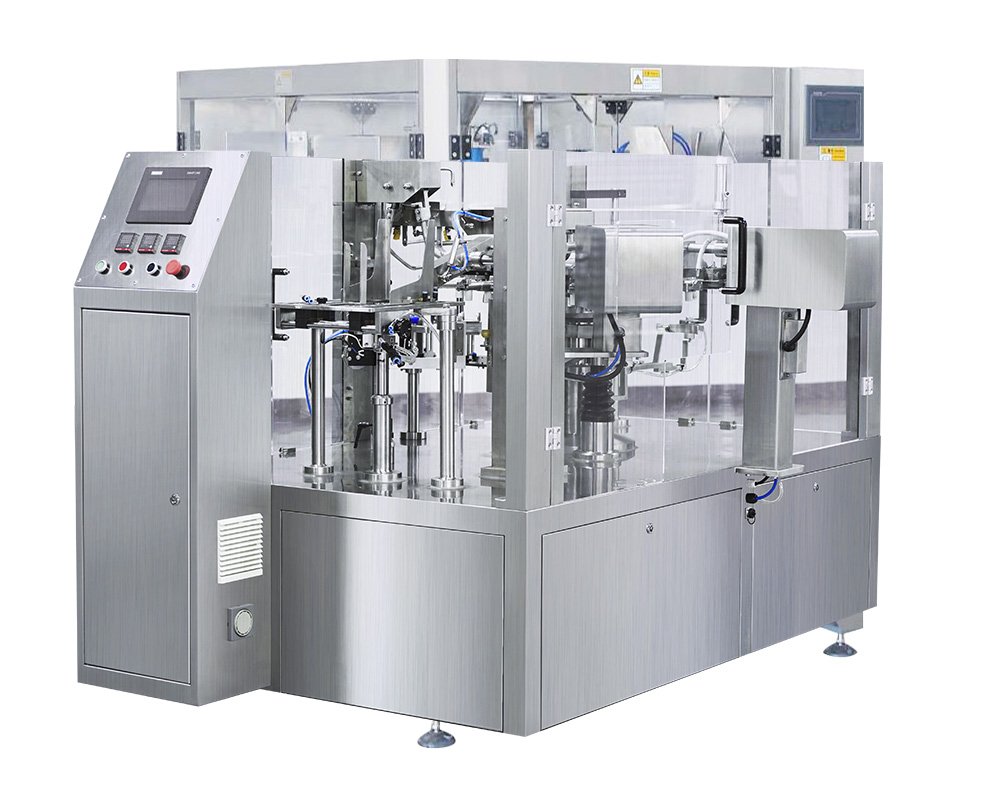

Premade Bag Packing Machine

Fully automatic premade bag packing machine with servo control system, designed for stable, efficient, and flexible packaging of various pouch types.

Product Details

Key advantages and core functions of the machine.

Fully Automated Process – Integrates bag feeding, opening, filling, sealing, and output in one streamlined system.
Wide Bag Compatibility – Supports multiple bag types including stand-up pouches, zipper bags, and gusseted bags.
High Precision Filling – Works with different dosing systems for accurate handling of powders, granules, and liquids.
User-Friendly Operation – Touchscreen control panel allows quick setup, monitoring, and parameter adjustment.
Smart Detection System – Prevents filling and sealing when bags are not properly opened, reducing material waste.
Durable & Hygienic Design – Built with high-quality stainless steel for long service life and easy cleaning.

Detailed technical parameters and machine data.

Model	SKGD-200R	SKGD-300R
Working Stations	8 Stations
Bag Types	Gusseted Bag, Four-Side Seal Bag, Fin Seal Bag, Zip-Lock Bag, Spout Pouch, etc.
Bag Size	Width: 80–200 mm Length: 100–350 mm	Width: 180–300 mm Length: 100–400 mm
Packing Speed	20–60 bags/min (depending on product weight)	20–45 bags/min (depending on product weight)
Filling Range	10–2500 g	10–3500 g
Clamping Adjustment	Synchronized adjustment via handwheel
Noise Level	≤ 70 dB
Sealing Type	Straight + Mesh
Machine Weight	1400 kg	1800 kg
Power Supply	380V / 3P / 50–60Hz / 3.5 kW	380V / 3P / 50–60Hz / 5.5 kW
Air Consumption	≥ 0.6 m³/min (customer supplied)
Dimensions	(L) 2170 × (W) 1540 × (H) 1430 mm	(L) 2460 × (W) 1870 × (H) 1460 mm
Machine Frame	304 stainless steel for all material-contact parts; transmission and support frames are carbon steel
