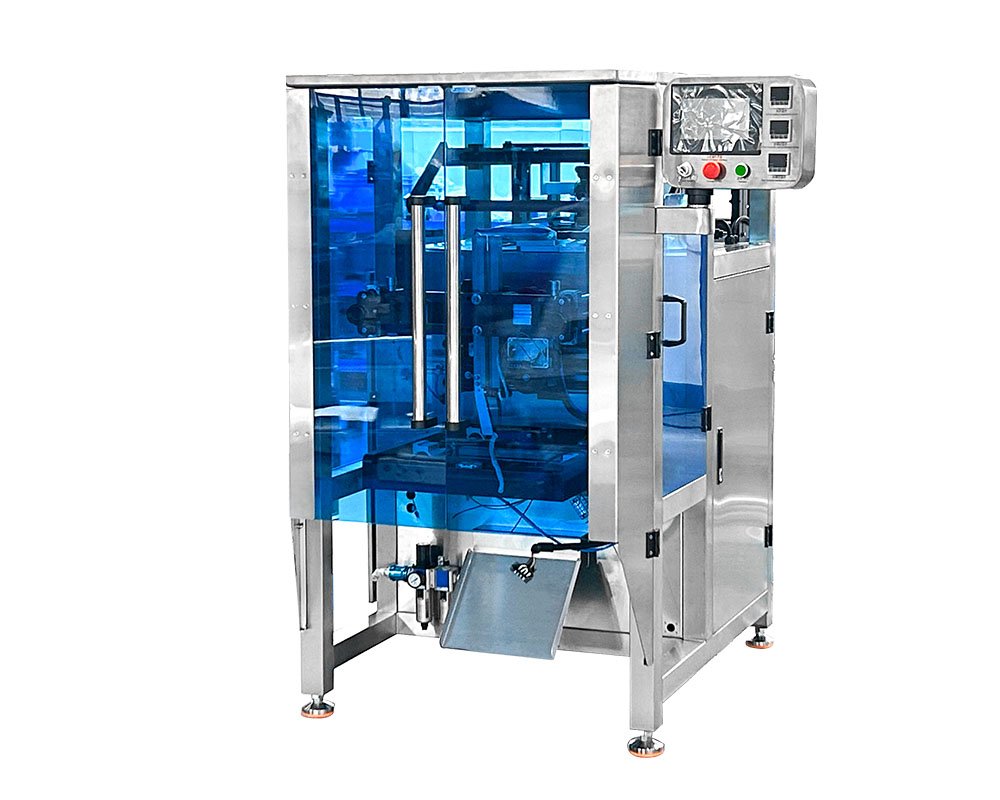

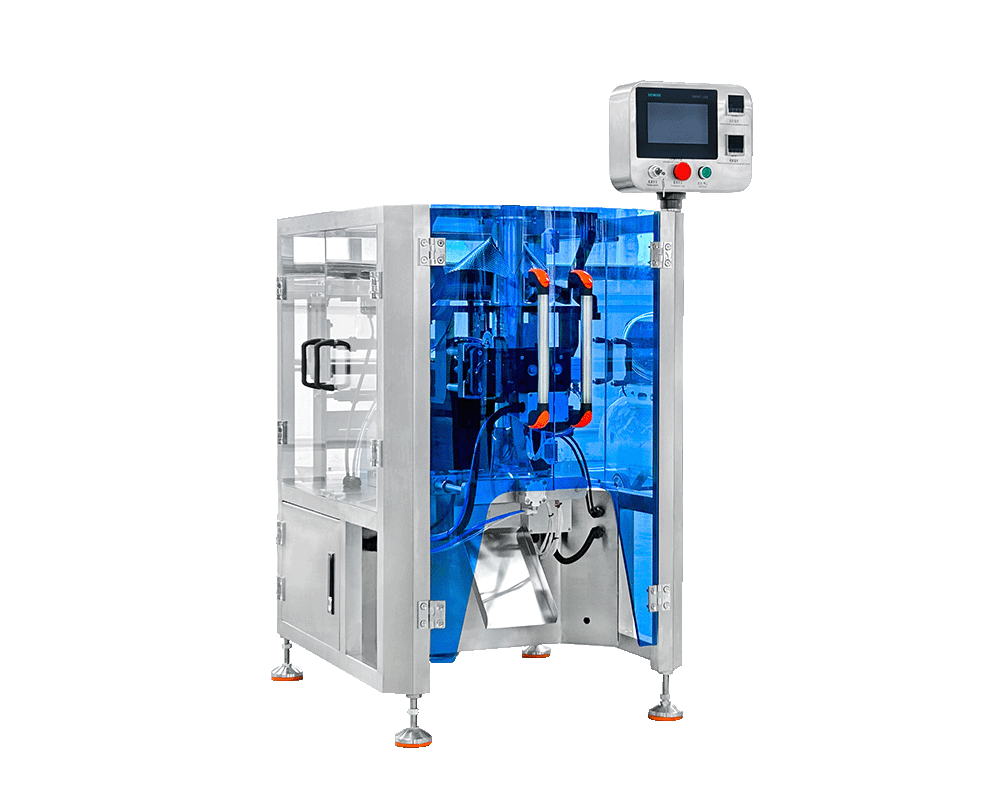

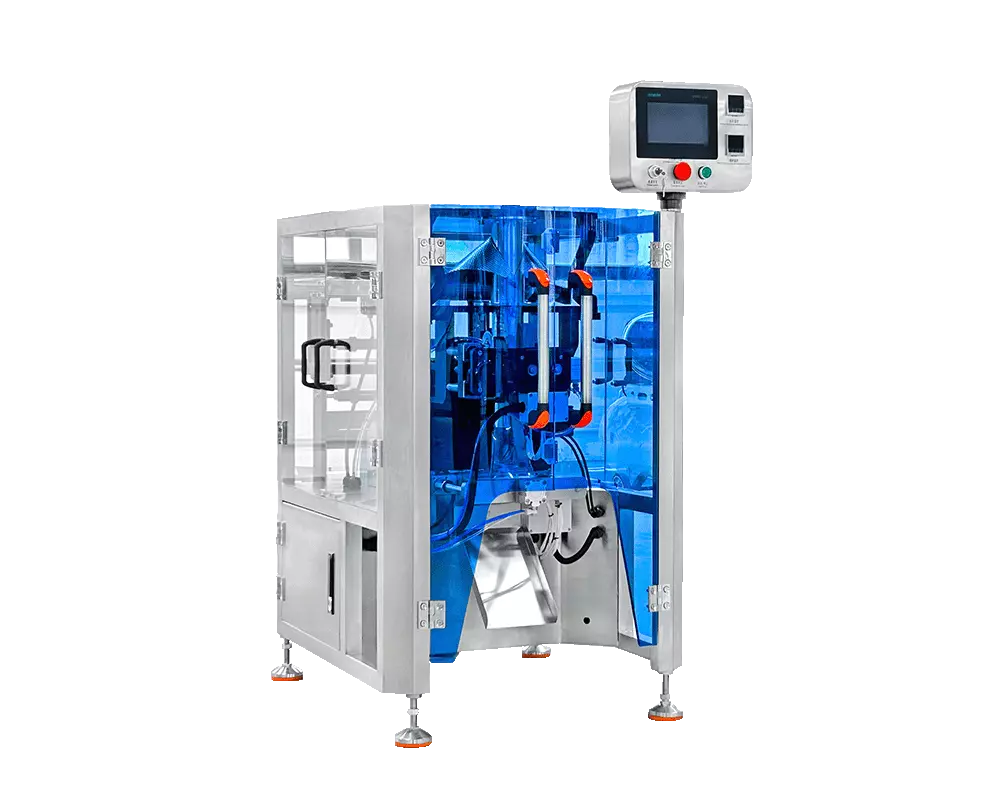

Vertical Packing Machine

High-precision vertical packaging solution for granules, powders, and bulk products with stable performance and flexible configurations.

Product Overview

Vertical Packing Machine is designed for efficient and accurate packaging of bulk products that require precise weighing and stable sealing. It is widely used in food, pharmaceutical, and hardware industries, supporting various bag sizes, materials, and filling systems to meet different production needs.

High Precision Weighing System

Ensures accurate dosing for granules, powders, and mixed materials, reducing waste and improving consistency.

Flexible Bag Size & Film Compatibility

Supports multiple bag lengths, widths, and packaging films such as OPP, CPP, PE, PET, and laminated materials.

Stable Operation & Easy Control

PLC control with user-friendly touch screen enables simple parameter setting, stable running, and easy maintenance.

Technical Specifications

Parameter	SKL-320	SKL-420	SKL-520	SKL-720	SKL-820	SKL-1050
Bag Length	40–200 mm	80–320 mm	80–420 mm	100–500 mm	100–550 mm	100–700 mm
Bag Width	50–150 mm	50–200 mm	80–250 mm	100–350 mm	180–400 mm	350–500 mm
Max Film Width	320 mm	420 mm	520 mm	720 mm	820 mm	1050 mm
Packing Material	OPP / CPP / OPP / PE / PET / PE
Packing Speed	50–60 bags/min	5–60 bags/min	5–50 bags/min	5–40 bags/min	5–30 bags/min	5–15 bags/min
Measuring Range	150–1000 ml	150–1500 ml	150–2000 ml	500–3500 ml	Max. 6000 ml	6000–8500 ml
Power Supply	220V / 50–60Hz / 2.2 kW	220V / 50–60Hz / 2.2 kW	220V / 50–60Hz / 2.5 kW	220V / 50–60Hz / 3 kW	220V / 50–60Hz / 5 kW	380V / 50–60Hz / 3.2 kW
Machine Weight	300 kg	500 kg	550 kg	600 kg	900 kg	1150 kg
Machine Size (L×W×H)	1500 × 910 × 1400 mm	1662 × 1170 × 1410 mm	1700 × 1300 × 1580 mm	1840 × 1800 × 2060 mm	1780 × 1350 × 1950 mm	1850 × 1480 × 2230 mm

Machine Operation Video

Packaging Samples

Clean, professional packaging that enhances product presentation and shelf appeal.
